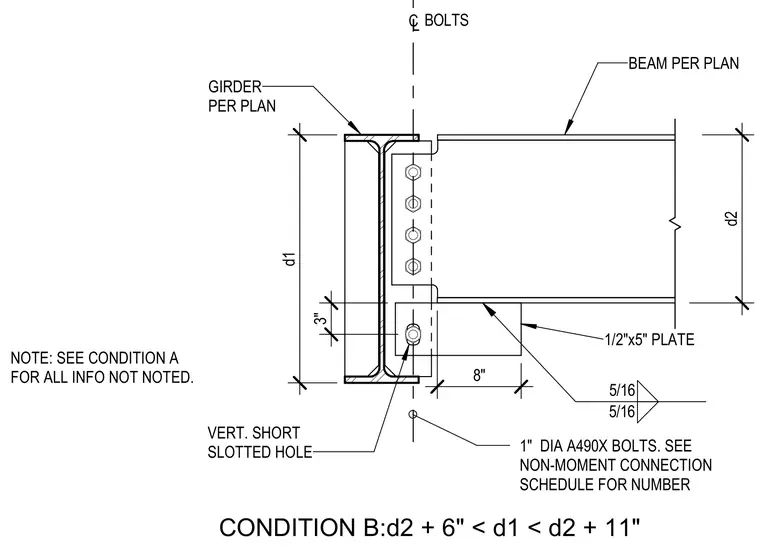

A steel beam frames into a supporting girder per plan with a bolted shear connection. A one-half-inch by five-inch plate is welded to the underside of the beam web and fastened to the girder flange with one-inch diameter A490-X bolts. A vertical short slotted hole provides adjustability at the lower plate connection. Five-sixteenths-inch fillet welds secure the plate to the structural members as specified.
GIRDER PER PLAN BEAM PER PLAN C L BOLTS 1" DIA A490X BOLTS. SEE NON-MOMENT CONNECTION SCHEDULE FOR NUMBER 8" d2 d1 1/2"x5" PLATE CONDITION B:d2 + 6" < d1 < d2 + 11" 3" VERT. SHORT SLOTTED HOLE NOTE: SEE CONDITION A FOR ALL INFO NOT NOTED. 5/16 5/16
