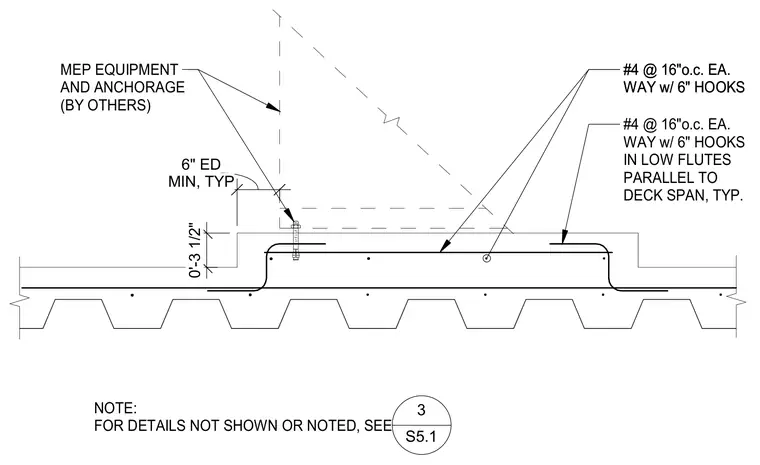

A concrete housekeeping pad bears on a formed metal deck with reinforcing steel. The pad has a thickness of 3 1/2 inches and is reinforced with number 4 bars at 16 inches on center each way with 6-inch hooks in low flutes parallel to the deck span. Mechanical, electrical, and plumbing equipment and its anchorage are provided by others. Minimum edge distance for anchors is 6 inches.
0'-3 1/2" #4 @ 16"o.c. EA. WAY w/ 6" HOOKS IN LOW FLUTES PARALLEL TO DECK SPAN, TYP. NOTE: FOR DETAILS NOT SHOWN OR NOTED, SEE 3 S5.1 MIN, TYP 6" ED MEP EQUIPMENT AND ANCHORAGE (BY OTHERS) #4 @ 16"o.c. EA. WAY w/ 6" HOOKS #4 @ 16"o.c. EA. WAY w/ 6" HOOKS
