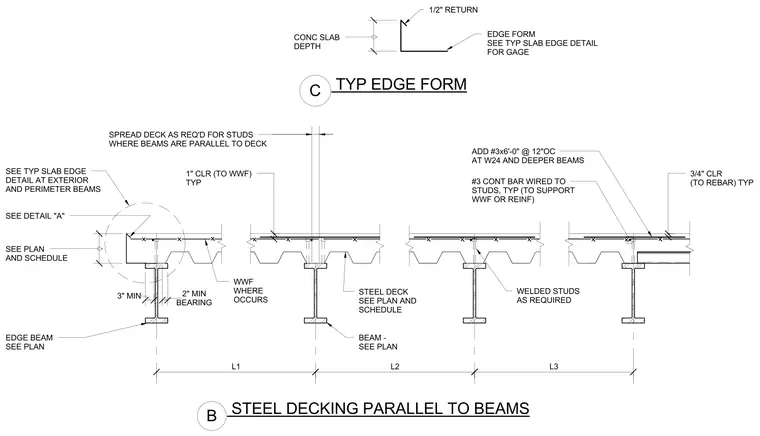

A concrete slab is poured over steel decking running parallel to supporting steel beams sized per the structural plans. Welded studs are attached as required with a continuous number three bar wired to the studs typically to support welded wire fabric or reinforcing steel. A three-inch minimum bearing and two-inch minimum condition are maintained at the edge beam. An edge form with a one-half-inch return is detailed for the slab edge condition.
ADD #3x6'-0" @ 12"OC AT W24 AND DEEPER BEAMS STEEL DECKING PARALLEL TO BEAMS SPREAD DECK AS REQ'D FOR STUDS WHERE BEAMS ARE PARALLEL TO DECK STEEL DECK SEE PLAN AND SCHEDULE WELDED STUDS AS REQUIRED #3 CONT BAR WIRED TO STUDS, TYP (TO SUPPORT WWF OR REINF) EDGE BEAM SEE PLAN WWF WHERE OCCURS BEAM - SEE PLAN 1" CLR (TO WWF) TYP CONC SLAB DEPTH 1/2" RETURN SEE DETAIL "A" SEE TYP SLAB EDGE DETAIL AT EXTERIOR AND PERIMETER BEAMS TYP EDGE FORM C L1 L2 L3 . 3" MIN BEARING 2" MIN SEE PLAN AND SCHEDULE . 3/4" CLR (TO REBAR) TYP . B EDGE FORM SEE TYP SLAB EDGE DETAIL FOR GAGE .
