Structural · S-W3AMX

Vertical Post and Precast Concrete Panel Connection at Composite Slab

Materials

Concrete Steel

Elements

Columns Beams Anchors / Embeds Connections / Plates

Connections

Bolted Connection Embed Plate

About this detail

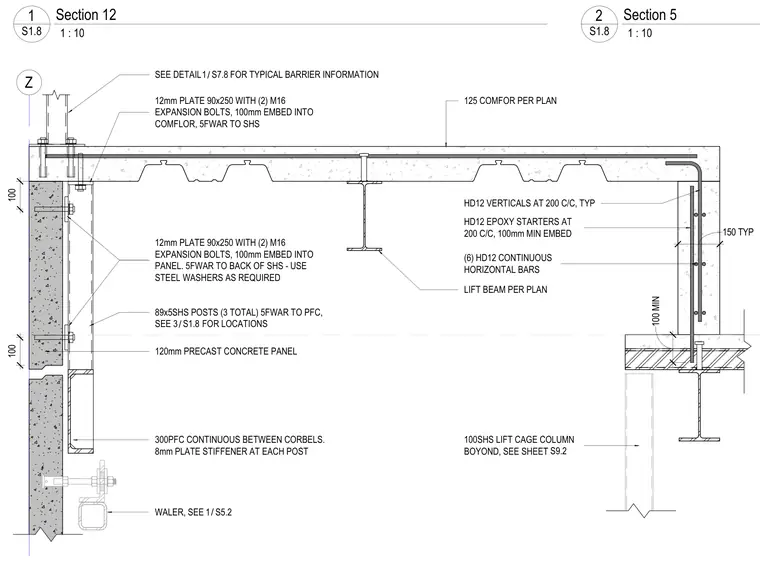

The assembly features three 89x5 hollow structural section vertical posts spaced at 1000 millimeters, secured with 12 millimeter thick 90x250 millimeter plates and two M16 expansion bolts having 100 millimeter embedment into a 120 millimeter precast concrete panel. A continuous 300 parallel flange channel spans between corbels with an 8 millimeter plate stiffener at each post. The connection to the 125 millimeter composite metal deck slab incorporates matching 12 millimeter plates with two M16 expansion bolts. Additional reinforcement includes HD12 vertical bars at 200 millimeter centers, HD12 epoxy starters with 100 millimeter minimum embedment, and six continuous horizontal bars.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
