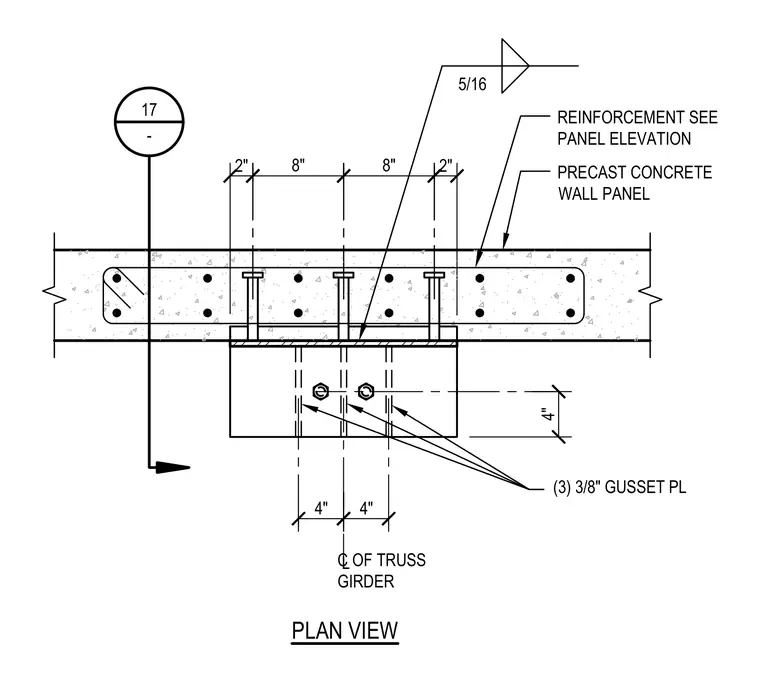

A truss girder connects to a precast concrete wall panel using three 3/8-inch gusset plates welded with 5/16-inch fillet welds. The precast concrete wall panel contains internal reinforcement detailed per the panel elevation. Embedded studs anchor the connection plate assembly into the concrete panel. Dimensions govern the 4-inch spacing from the centerline of the truss girder across the connection layout.
2" 2" PLAN VIEW (3) 3/8" GUSSET PL 4" C OF TRUSS GIRDER L 4" 8" 8" 17 - 5/16 PRECAST CONCRETE WALL PANEL REINFORCEMENT SEE PANEL ELEVATION 4"
