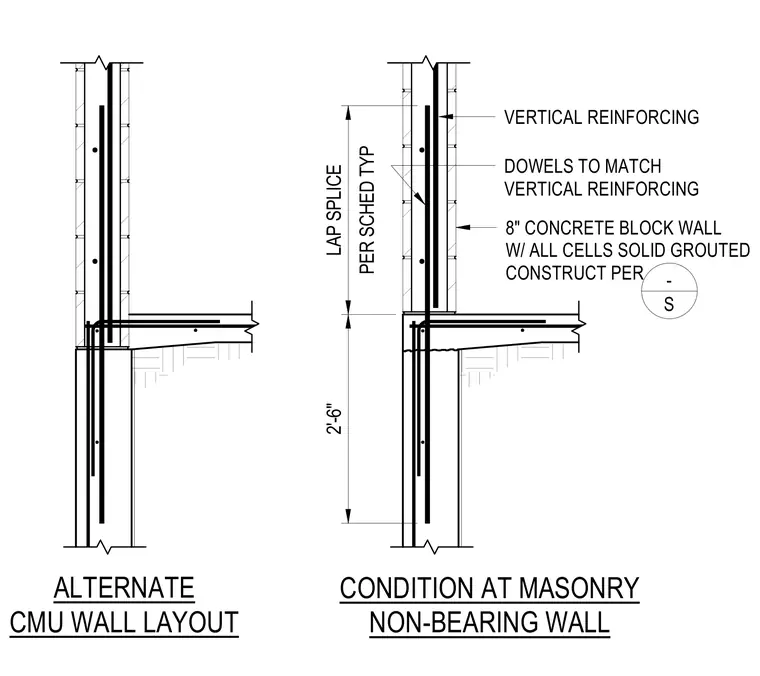

An eight-inch concrete block wall features fully solid grouted cells with vertical reinforcing dowels matched to the wall reinforcement. A vertical lap splice length is provided per schedule typically, with a two-foot-six-inch dimension indicated for the intersection condition at a masonry non-bearing wall.
VERTICAL REINFORCING DOWELS TO MATCH VERTICAL REINFORCING 8" CONCRETE BLOCK WALL W/ ALL CELLS SOLID GROUTED CONSTRUCT PER CONDITION AT MASONRY NON-BEARING WALL ALTERNATE CMU WALL LAYOUT 2'-6" PER SCHED TYP LAP SPLICE - S
