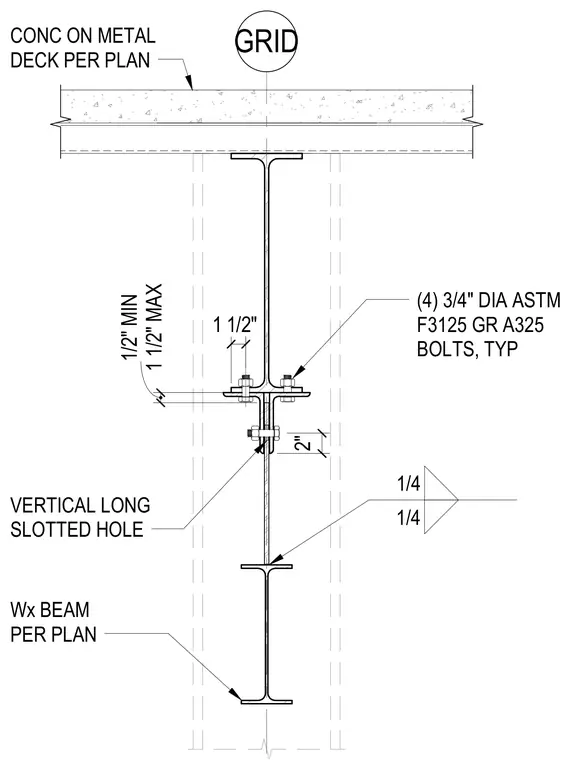

A wide-flange structural steel beam connects beneath a concrete slab on metal deck per plan, aligned with a grid line. The vertical sliding connection incorporates four three-quarter-inch diameter ASTM F3125 Grade A325 bolts typically, utilizing a vertical long slotted hole allowing a range from one-half inch minimum to one and one-half inches maximum movement with a two-inch dimension. A separate structural member below features fillet welds sized at one-quarter inch.
GRID 1 1/2" MAX 1/2" MIN VERTICAL LONG SLOTTED HOLE (4) 3/4" DIA ASTM F3125 GR A325 BOLTS, TYP 1 1/2" 1/4 1/4 CONC ON METAL DECK PER PLAN Wx BEAM PER PLAN 2"
