Structural · S-W2MJY

Concrete Equipment Curb Reinforcement Detail

Elements

About this detail

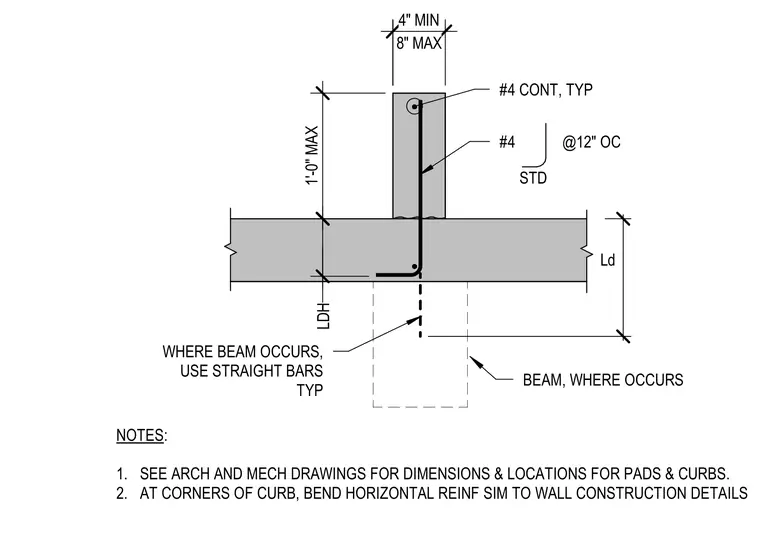

A concrete equipment curb details the structural reinforcement required for rooftop or slab-mounted equipment pads. The curb features a minimum width of four inches and a maximum width of eight inches, standing up to one foot high above the supporting slab. Vertical reinforcing consists of number four bars spaced at twelve inches on center with standard hooks, while a single number four continuous bar runs along the top. Where a structural beam occurs below, straight bars are used with specified development lengths.
