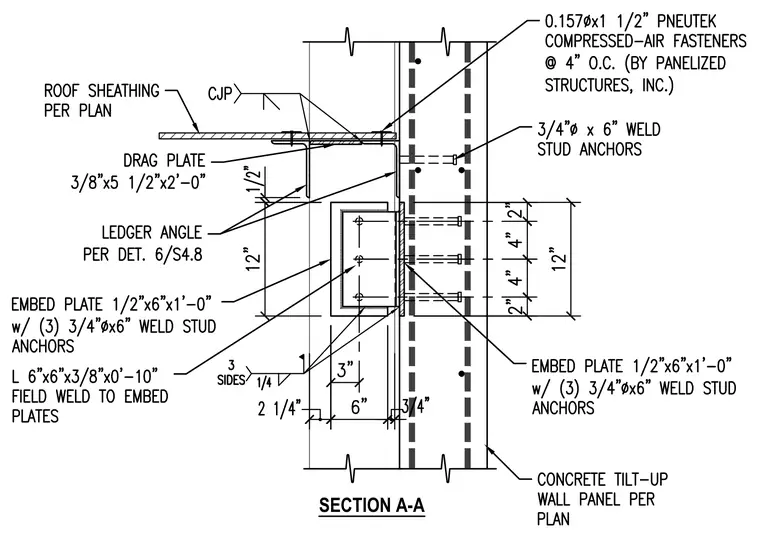

A 3/8-inch by 5-1/2-inch by 2-foot drag plate connects to roof sheathing per plan and fastens to the top flange of a ledger angle with 0.157-inch diameter by 1-1/2-inch compressed-air fasteners spaced at 4 inches on center. The ledger angle is supported by a 1/2-inch by 6-inch by 1-foot embed plate anchored into a concrete tilt-up wall panel with three 3/4-inch diameter by 6-inch weld stud anchors. An angle measuring 6 inches by 6 inches by 3/8-inch by 0-10 inches field welds to the embed plates on three sides with a 1/4-inch fillet weld. A complete joint penetration weld ties the drag plate assembly to the supporting framing above.
