Structural · S-W2J24

Concrete Wall Opening and Dowel Reinforcement Detail

Materials

Concrete

Elements

Walls Floors / Slabs Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development Embed Plate

About this detail

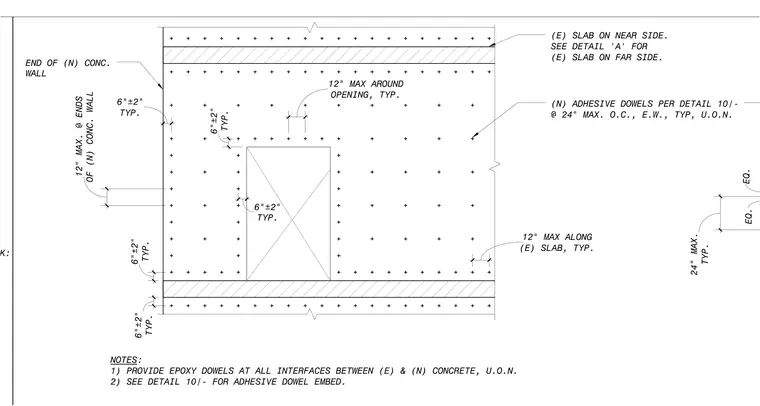

New adhesive dowels feature standard ninety-degree hooks at interfaces between existing and new concrete walls. New adhesive dowels are spaced at twenty-four inches maximum on center each way typically, unless noted otherwise. Additional dowels are positioned twelve inches maximum around wall openings and at the ends of new concrete walls, with spacing maintained at six inches plus or minus two inches typical. Existing slabs on near and far sides interface with the concrete wall per referenced details.
