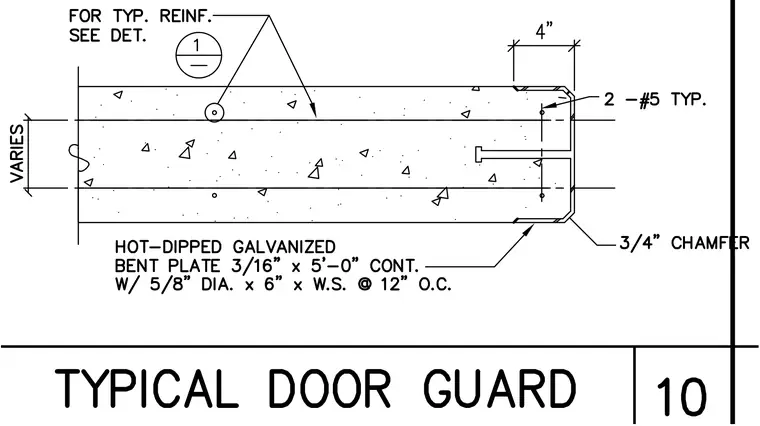

A concrete door guard features a varying thickness with internal reinforcement detailed per typical reinforcement notes and detail one. The outer corner is protected by a continuous three-sixteenths-inch by five-foot hot-dipped galvanized bent plate anchored with five-eighths-inch diameter by six-inch welded studs spaced at twelve inches on center. The vertical edge finishes with a three-quarters-inch chamfer and two number five typical reinforcing bars positioned four inches back from the face.
