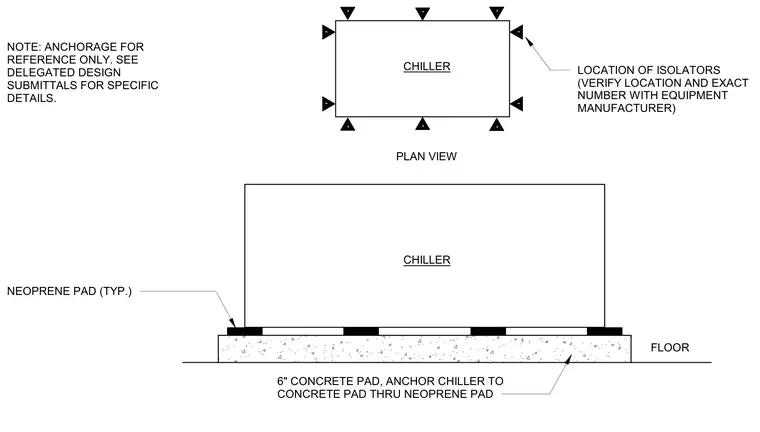

A chiller unit rests on neoprene pads placed over a six-inch concrete pad on the floor. The chiller unit is anchored directly to the concrete pad through the neoprene vibration isolator pads typically located around the base. The exact location and number of isolators must be verified with the equipment manufacturer. Anchorage shown is for reference only and requires coordination with delegated design submittals.
LOCATION OF ISOLATORS (VERIFY LOCATION AND EXACT NUMBER WITH EQUIPMENT MANUFACTURER) PLAN VIEW FLOOR CHILLER CHILLER NEOPRENE PAD (TYP.) 6" CONCRETE PAD, ANCHOR CHILLER TO CONCRETE PAD THRU NEOPRENE PAD NOTE: ANCHORAGE FOR REFERENCE ONLY. SEE DELEGATED DESIGN SUBMITTALS FOR SPECIFIC DETAILS.
