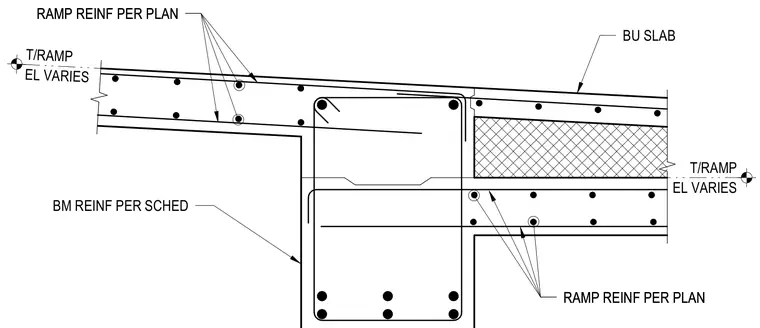

A reinforced concrete ramp slab transitions across a supporting concrete beam featuring beam reinforcement per schedule and ramp reinforcement per plan. The top of the ramp sits at a variable elevation indicated as EL VARIES. A built-up slab condition abuts the main support zone.
EL VARIES T/RAMP RAMP REINF PER PLAN RAMP REINF PER PLAN RAMP REINF PER PLAN BM REINF PER SCHED EL VARIES T/RAMP RAMP REINF PER PLAN BU SLAB
