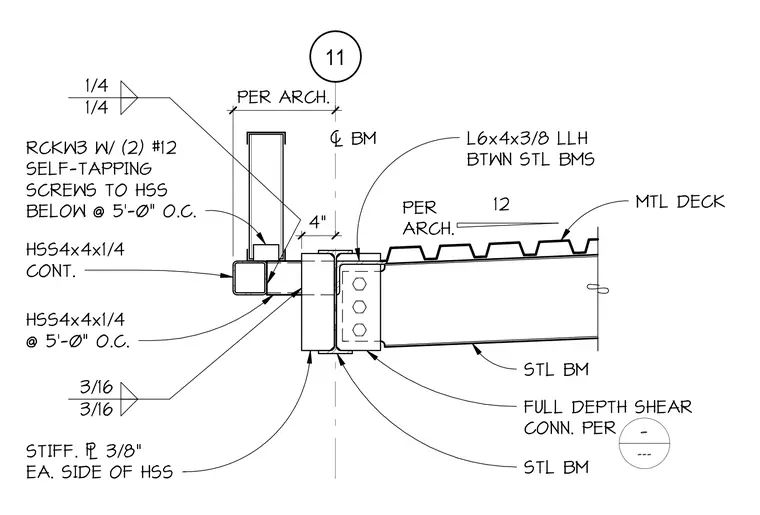

A structural steel beam connects to a continuous HSS4x4x1/4 hollow structural section column using a full depth shear connection. Three-eighths inch stiffener plates are welded to each side of the HSS column with quarter-inch fillet welds. An L6x4x3/8 long-leg-horizontal angle spans between the steel beams. A continuous HSS4x4x1/4 member is secured with RCKW3 blocking attached using two number twelve self-tapping screws to the lower HSS at five feet on center.
MTL DECK 11 BM STL BM FULL DEPTH SHEAR CONN. PER - --- STL BM STIFF. 3/8" EA. SIDE OF HSS HSS4x4x1/4 @ 5'-0" O.C. 1/4 1/4 4" PER ARCH. 12 L6x4x3/8 LLH BTWN STL BMS HSS4x4x1/4 CONT. 3/16 3/16 RCKW3 W/ (2) #12 SELF-TAPPING SCREWS TO HSS BELOW @ 5'-0" O.C. PER ARCH.
