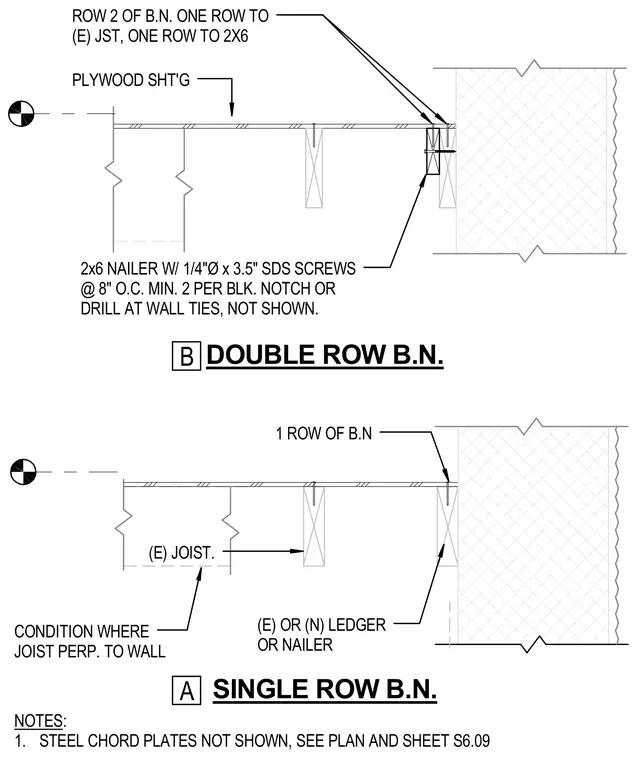

Single and double row blocking nailing conditions occur where wood joists run perpendicular to a wall. The assembly features plywood sheathing bearing over wood joists and a wood ledger or nailer attached to the wall. A 2x6 wood nailer is fastened with one-quarter inch diameter by three and a half inch SDS screws spaced at eight inches on center with a minimum of two per block, notched or drilled at wall ties. Steel chord plates are omitted from this view and referenced to the structural plans.
ROW 2 OF B.N. ONE ROW TO (E) JST, ONE ROW TO 2X6 2x6 NAILER W/ 1/4"Ø x 3.5" SDS SCREWS @ 8" O.C. MIN. 2 PER BLK. NOTCH OR DRILL AT WALL TIES, NOT SHOWN. SINGLE ROW B.N. A (E) JOIST. 1 ROW OF B.N PLYWOOD SHT'G CONDITION WHERE JOIST PERP. TO WALL (E) OR (N) LEDGER OR NAILER DOUBLE ROW B.N. B NOTES: 1. STEEL CHORD PLATES NOT SHOWN, SEE PLAN AND SHEET S6.09
