Structural · S-VZHCW

Floor and Roof Transition Detail with Window Head

Materials

Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Beams Walls Windows Roofs Floors / Slabs Decks Arches Bracing Insulation Connections / Plates

Connections

Bracing Connection

About this detail

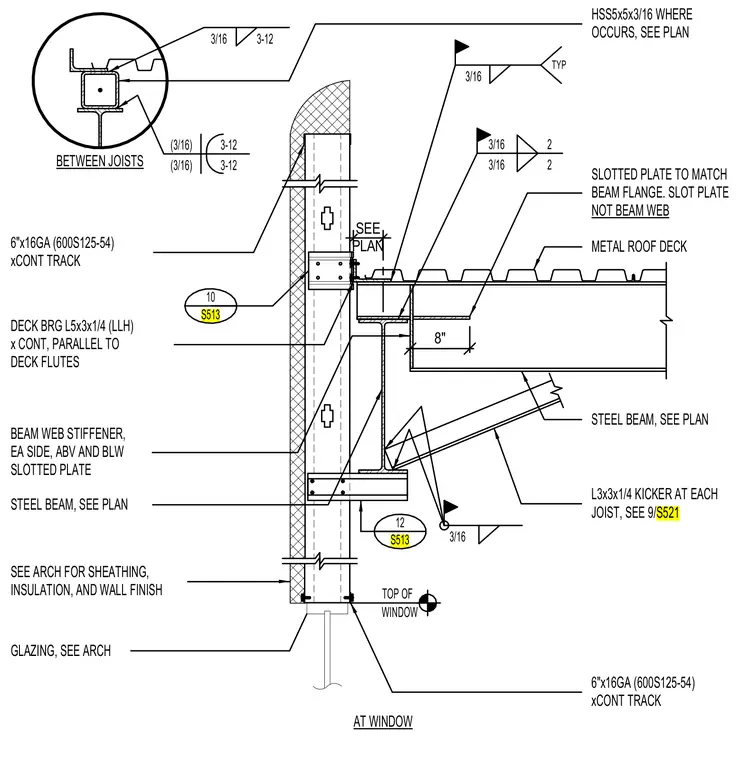

A floor and roof transition assembly incorporates cold-formed steel tracks, steel beams, and a metal roof deck bearing on an L5x3x1/4 angle parallel to the deck flutes. A slotted plate matches the beam flange and is slotted rather than the beam web, accompanied by beam web stiffeners on each side above and below the slotted plate. An HSS5x5x3/16 hollow structural section occurs at specific locations, and an L3x3x1/4 kicker is positioned at each joist. Continuous 6-inch 16-gauge tracks (600S125-54) frame the transition, while the window head and glazing details refer to architectural drawings for sheathing, insulation, and wall finishes.
