Structural · S-VZGH5

Typical Braced Frame Protected Zones

Materials

Glass / Glazing

Elements

Columns Beams Bracing

Connections

Braced Frame Connection Bracing Connection Welded Connection Bolted Connection

About this detail

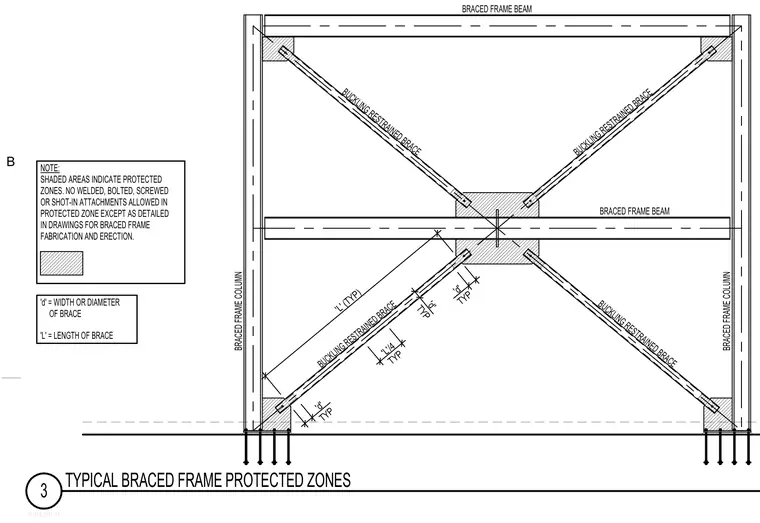

This structural diagram identifies protected zones across braced frame columns, beams, and buckling-restrained braces. Shaded areas designate restricted regions where welded, bolted, screwed, or shot-in attachments are prohibited except as detailed for fabrication and erection. Dimension guidelines reference the width or diameter 'd' and length 'l' of the brace to establish boundaries for the protected zones.
