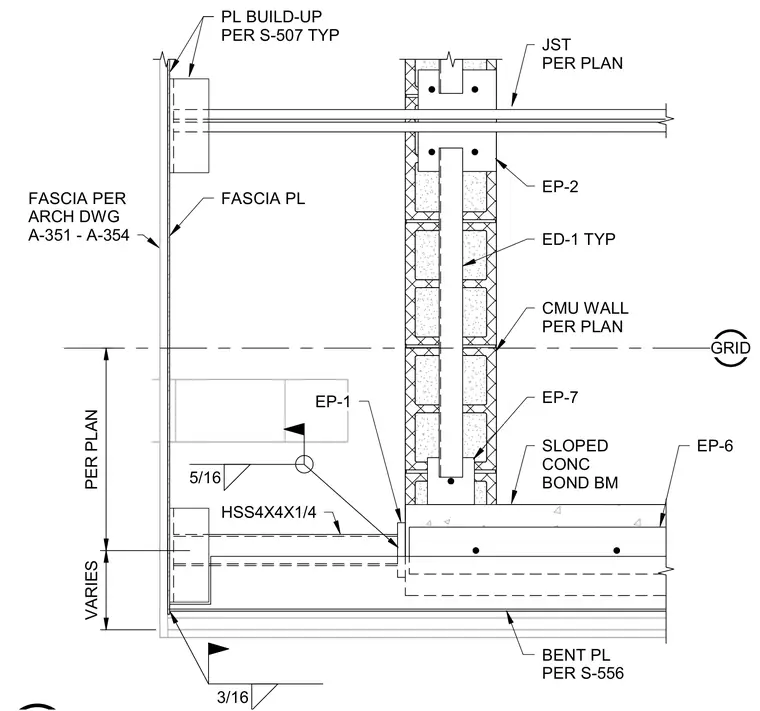

A hollow structural section measuring 4x4x1/4 inches ties back to a sloped concrete bond beam and concrete masonry unit wall per plan. A bent plate per S-556 connects at the base with a 3/16 inch fillet weld. A fascia plate and plate build-up per S-507 mount to the exterior. A joist bears on the masonry wall, which features vertical reinforcing bars and a bond beam.
A ED-1 TYP 5/16 EP-1 SLOPED CONC BOND BM EP-2 CMU WALL PER PLAN HSS4X4X1/4 JST PER PLAN EP-7 FASCIA PL PER PLAN VARIES EP-6 BENT PL PER S-556 GRID FASCIA PER ARCH DWG A-351 - A-354 3/16 PL BUILD-UP PER S-507 TYP S-507
