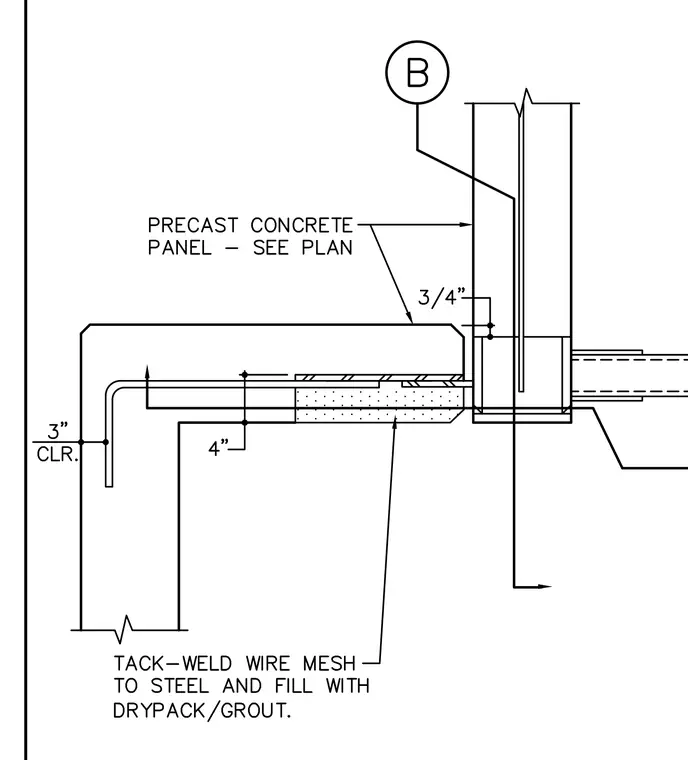

A precast concrete panel connects to a supporting steel assembly with a three-quarter-inch joint clearance. Welded wire mesh is tack-welded to the structural steel and the void is filled with drypack grout. Additional edge clearance is maintained at three inches.
