An in-plane diagonal brace connects to vertical studs and continuous track members in cold-formed steel framing. The assembly uses 600S162-43 vertical hangers spaced at 16 inches on center alongside 600S162-54 diagonal braces spaced at 48 inches on center. Each diagonal brace attaches to the vertical studs using two number 10 sheet metal screws per stud. A 600T150-43 continuous track secures to each flange of each vertical stud using number 10 sheet metal screws. Four number 10 sheet metal screws fasten each end of the diagonal brace.

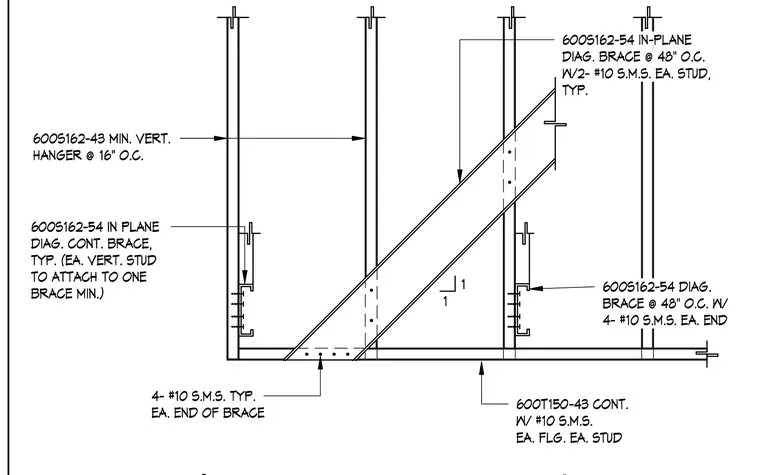

600S162-43 MIN. VERT. HANGER @ 16" O.C. 600S162-54 IN-PLANE DIAG. BRACE @ 48" O.C. W/2- #10 S.M.S. EA. STUD, TYP. 600T150-43 CONT. W/ #10 S.M.S. EA. FLG. EA. STUD 600S162-54 IN PLANE DIAG. CONT. BRACE, TYP. (EA. VERT. STUD TO ATTACH TO ONE BRACE MIN.) 1 1 4- #10 S.M.S. TYP. EA. END OF BRACE 600S162-54 DIAG. BRACE @ 48" O.C. W/ 4- #10 S.M.S. EA. END
