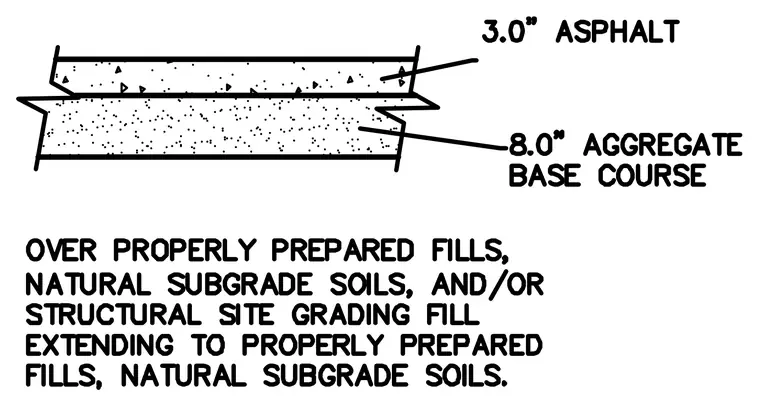

The pavement assembly consists of three inches of asphalt surfacing placed directly over an eight-inch aggregate base course. The entire section is supported by properly prepared fills, natural subgrade soils, and structural site grading fill.
