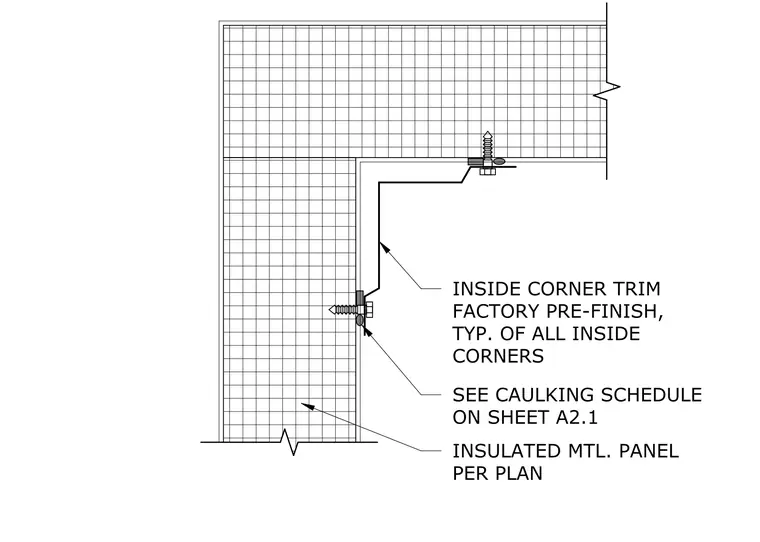

This assembly details the inside corner junction of insulated metal panels. A factory pre-finished inside corner trim piece is fastened to the face of each panel using mechanical fasteners. A bead of sealant is applied at the interface between the trim and the panel face, with the specific sealant type referenced to the caulking schedule on sheet A2.1. This configuration is typical for all inside corners throughout the project.
Text on the drawing
INSULATED MTL. PANEL PER PLAN INSIDE CORNER TRIM FACTORY PRE-FINISH, TYP. OF ALL INSIDE CORNERS SEE CAULKING SCHEDULE ON SHEET A2.1
