Structural · S-VY8DJ

Slab Edge Connection at Hollow Structural Section and Timber Framing

Materials

Steel Timber / Wood

Elements

Floors / Slabs Decks Anchors / Embeds

Connections

HSS Connection Bolted Connection Embed Plate

About this detail

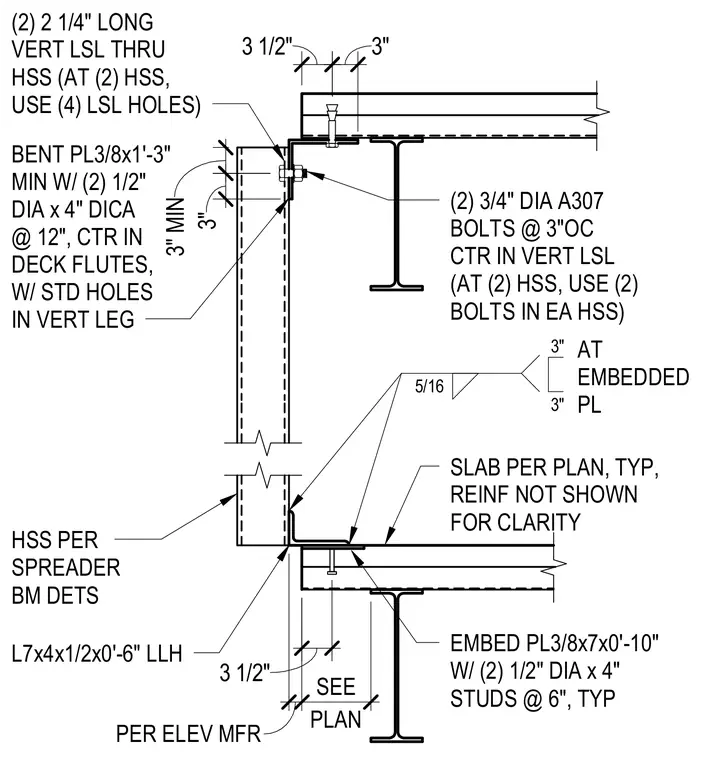

A slab edge connection framing condition between a concrete floor slab and hollow structural section columns or framing. The assembly features a bent plate measuring three-eighths by one foot three inches, anchored with two-inch diameter by four-inch cast-in anchors centered in the deck flutes, and standard holes in the vertical leg secured by two three-quarter-inch diameter A307 bolts at three inches on center through vertical laminated strand lumber. An L7x4x1/2 angle with a length of six inches connects to an embedded plate measuring three-eighths by seven by ten inches with two one-half-inch diameter by four-inch studs at six inches on center, welded with a five-sixteenth-inch fillet weld at the embedded plate. The concrete slab thickness is maintained at a minimum of three inches per plan with reinforcement omitted for clarity, while hollow structural sections are sized per spreader beam details.
