A hollow structural section member connects to a concrete panel per plan using a galvanized steel plate measuring one-half inch by one foot by one foot eight inches. The embedded plate is secured with six three-quarter-inch diameter by six-inch long stud bolts at eight-inch gauge. The HSS member is welded to the plate with a one-quarter-inch fillet weld on three sides.

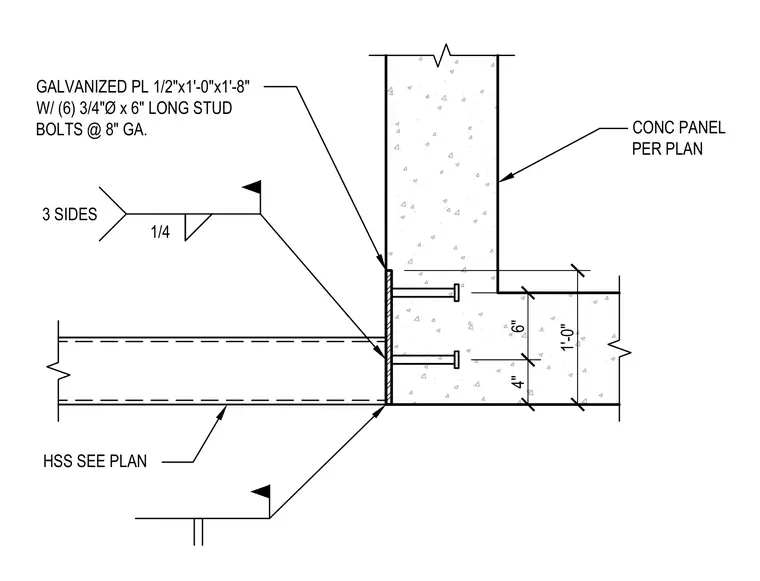

1'-0" 4" 6" HSS SEE PLAN CONC PANEL PER PLAN 1/4 3 SIDES GALVANIZED PL 1/2"x1'-0"x1'-8" W/ (6) 3/4"Ø x 6" LONG STUD BOLTS @ 8" GA.
