Structural · S-VY2CZ

Typical Small Opening in Floor Slab

Materials

Concrete Metal (misc.)

Elements

Beams Floors / Slabs Decks Roof / Floor Openings

Connections

Welded Connection Shear Stud / Composite

About this detail

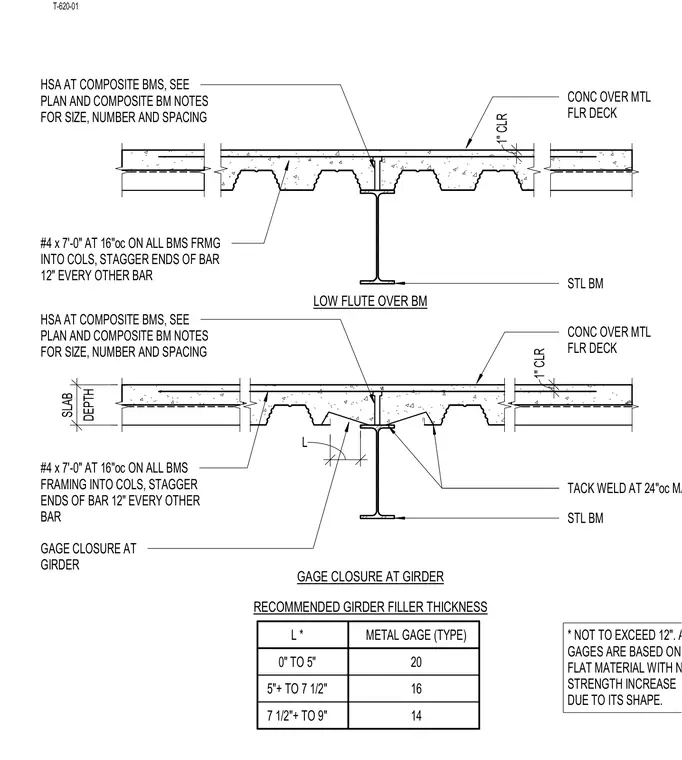

Concrete over metal floor deck rests on a steel beam with headed shear anchors welded through the deck. Number four reinforcing bars at seven feet zero inches long are spaced at sixteen inches on center on all beams framing into columns, with bar ends staggered twelve inches on every other bar. A gauge closure plate is provided at the girder depth with tack welds at twenty-four inches on center maximum. A recommended girder filler thickness table specifies metal gauges for lengths ranging from zero up to nine inches.
