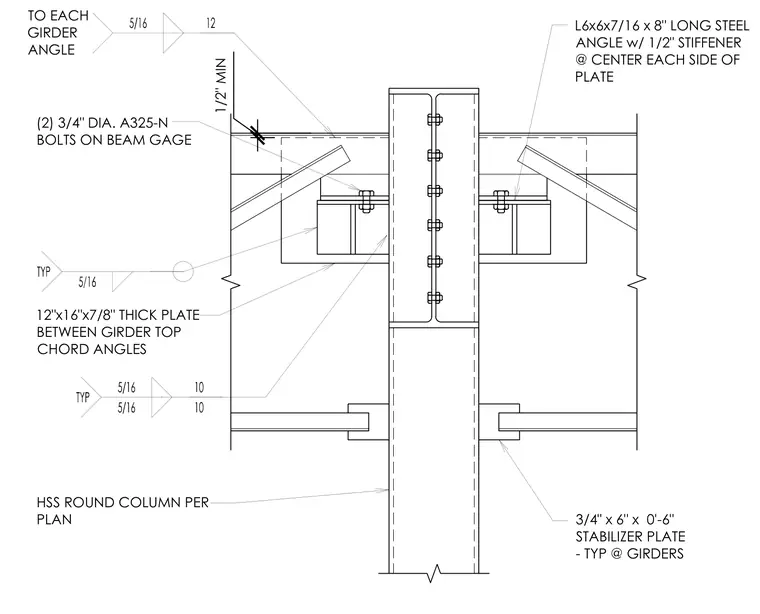

Steel girders frame into a round hollow structural section column with a 12-inch by 16-inch by 7/8-inch thick plate situated between the girder top chord angles. Two 3/4-inch diameter ASTM A325-N bolts on the beam gauge secure the connection. An L6x6x7/16 by 8-inch long steel angle with a 1/2-inch stiffener at the center of each side of the plate provides additional reinforcement. A 1/2-inch minimum clearance is maintained with 5/16-inch fillet welds. Additionally, a typical 3/4-inch by 6-inch by 0'-6" stabilizer plate is welded to the girders.
12"x16"x7/8" THICK PLATE BETWEEN GIRDER TOP CHORD ANGLES TO EACH GIRDER ANGLE L6x6x7/16 x 8" LONG STEEL ANGLE w/ 1/2" STIFFENER @ CENTER EACH SIDE OF PLATE 1/2" MIN 3/4" x 6" x 0'-6" STABILIZER PLATE - TYP @ GIRDERS (2) 3/4" DIA. A325-N BOLTS ON BEAM GAGE HSS ROUND COLUMN PER PLAN
