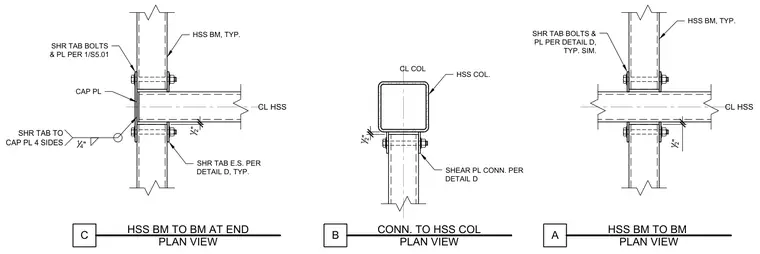

Hollow structural section beams connect to hollow structural section columns and other beams using bolted shear tabs and cap plates. A typical shear plate welded to a cap plate connects the framing beam to the continuous member with a one-quarter-inch fillet weld on four sides. Shear tab bolts and plates secure the connecting beam members with standard clearances.
HSS BM, TYP. SHR TAB E.S. PER DETAIL D, TYP. CAP PL SHR TAB BOLTS & PL PER 1/S5.01 B CONN. TO HSS COL PLAN VIEW SHEAR PL CONN. PER DETAIL D SHR TAB TO CAP PL 4 SIDES 14 " 12 " C HSS BM TO BM AT END PLAN VIEW 12 " HSS BM, TYP. SHR TAB BOLTS & PL PER DETAIL D, TYP. SIM. 12 " A HSS BM TO BM PLAN VIEW HSS COL. CL COL CL HSS CL HSS
