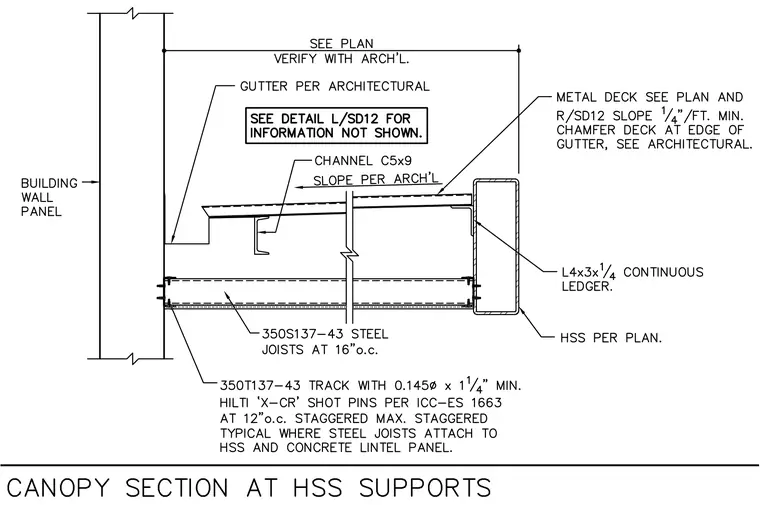

The canopy roof assembly features 350S137-43 cold-formed steel joists spaced at sixteen inches on center, supported by a continuous L4x3x1/4 angle ledger welded or fastened to an HSS member per plan on the outer edge. The interior end of the framing ties into a 350T137-43 track secured to the building wall panel using 0.145-inch diameter by 1-1/4-inch minimum Hilti X-CR shot pins per ICC-ES 1663 at twelve inches on center max staggered. An intermediate C5x9 channel supports the metal deck, which is sloped one-quarter inch per foot minimum with a chamfered edge at the gutter. Gutter placement and final slopes are coordinated per architectural requirements.
