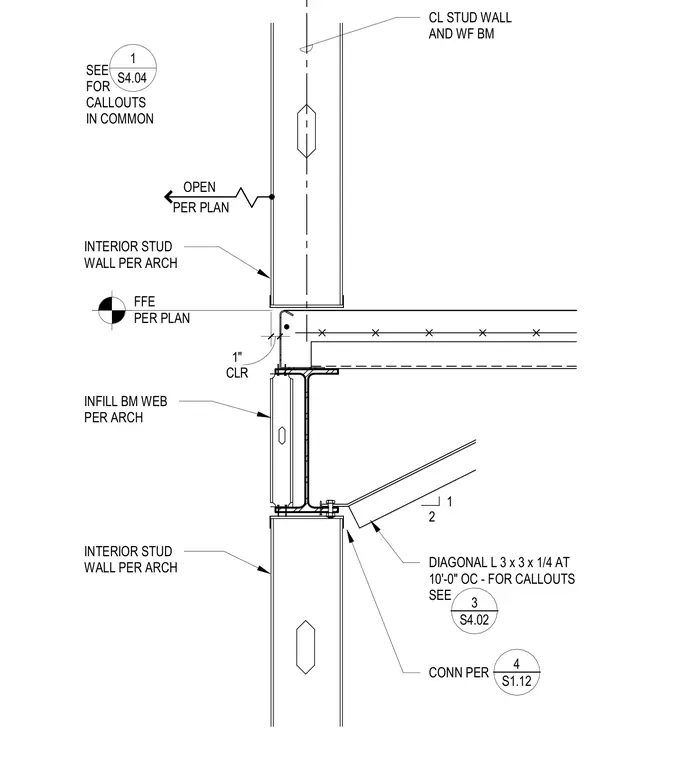

An interior stud wall aligns with a wide flange beam and incorporates a one-inch clearance at the floor level. An infill beam web connects per architectural specifications alongside a diagonal angle measuring 3x3x1/4 spaced at ten feet on center. Additional connection details are referenced via sheet callouts.
FFE PER PLAN INTERIOR STUD WALL PER ARCH INFILL BM WEB PER ARCH SEE FOR CALLOUTS IN COMMON 1 S4.04 INTERIOR STUD WALL PER ARCH _____ 3 S4.02 1 2 DIAGONAL L 3 x 3 x 1/4 AT 10'-0" OC - FOR CALLOUTS SEE CLR 1" CL STUD WALL AND WF BM CONN PER OPEN PER PLAN _____ 4 S1.12
