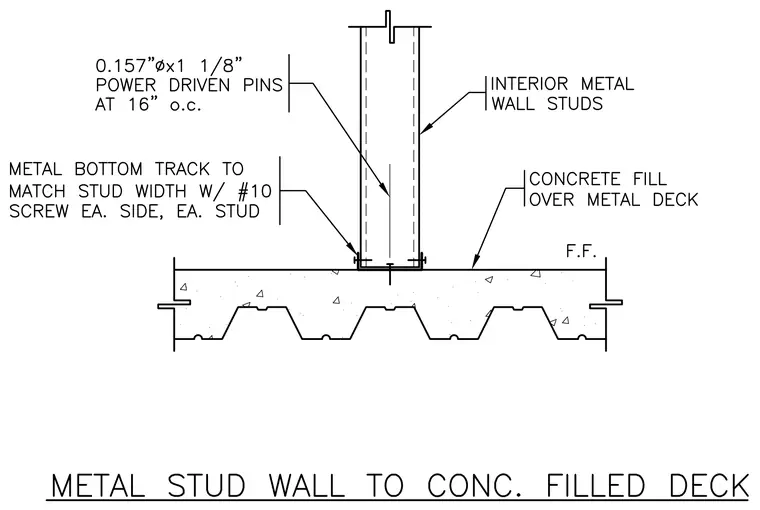

Interior metal wall studs are framed with a metal bottom track matching the stud width, fastened to each side of each stud with a number ten screw. The bottom track is anchored to the concrete fill over the metal deck using 0.157-inch diameter by 1-1/8-inch power-driven pins spaced at 16 inches on center.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
