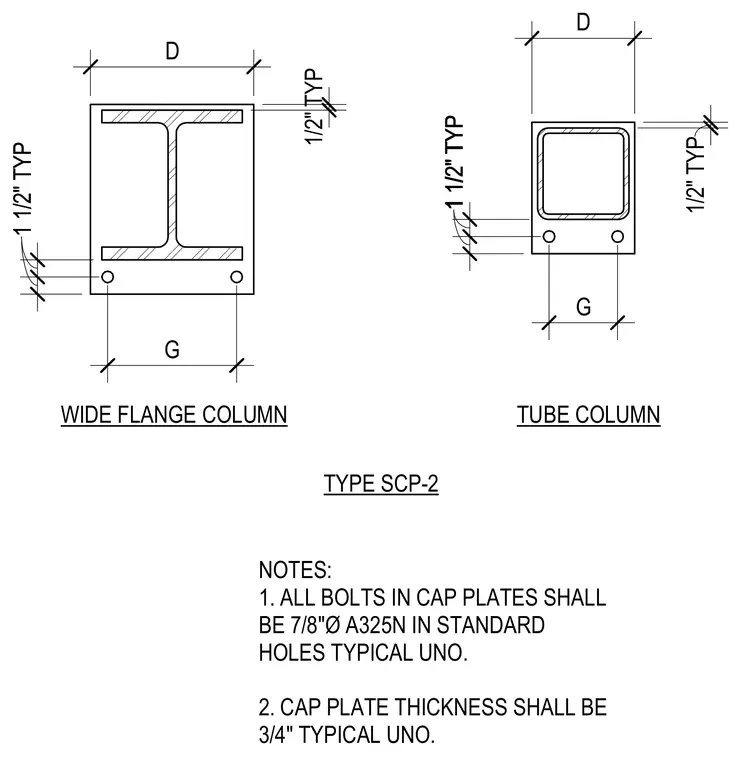

Column cap plate configurations for wide flange and hollow structural section tube columns designated as type SCP-2 utilize a three-quarter inch thick cap plate connected with seven-eighth inch diameter A325N high-strength bolts in standard holes. Edge distances are detailed at one and one-half inches typical, with one-half inch clearance provided at the top flange. Gaps and gauges are dimensioned according to the column profile.
TUBE COLUMN WIDE FLANGE COLUMN G D 1/2" TYP D G 1 1/2" TYP 1 1/2" TYP 1/2" TYP NOTES: 1. ALL BOLTS IN CAP PLATES SHALL BE 7/8"Ø A325N IN STANDARD HOLES TYPICAL UNO. 2. CAP PLATE THICKNESS SHALL BE 3/4" TYPICAL UNO. TYPE SCP-2 1 1/2" TYP 1 1/2" TYP
