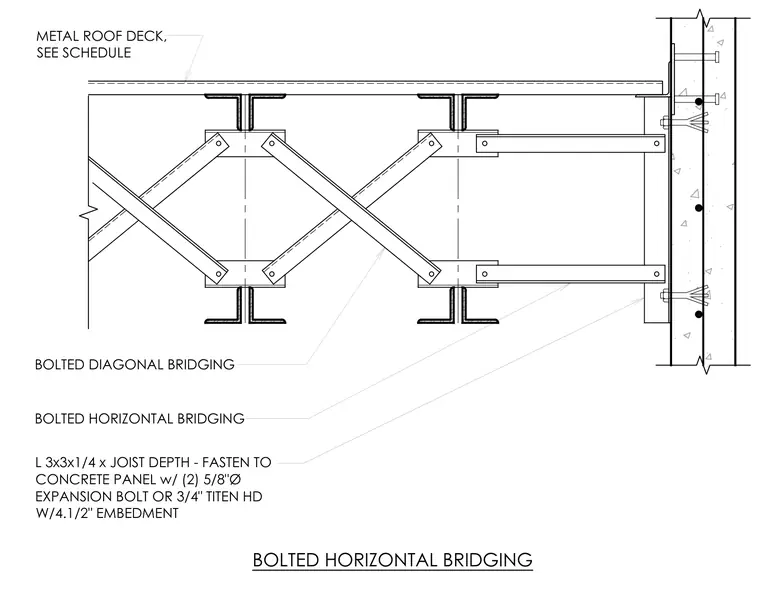

An open web steel joist bears against a concrete tilt-up wall panel utilizing an L 3x3x1/4 angle matched to the joist depth. The connection is secured to the concrete panel using two 5/8-inch diameter expansion bolts or 3/4-inch Titen HD anchors with a 4-1/2-inch embedment. Bolted diagonal bridging and bolted horizontal bridging provide lateral stability across the joists. A metal roof deck spans across the top chords of the joists per structural schedules.
L 3x3x1/4 x JOIST DEPTH - FASTEN TO CONCRETE PANEL w/ (2) 5/8"Ø EXPANSION BOLT OR 3/4" TITEN HD W/4.1/2" EMBEDMENT BOLTED DIAGONAL BRIDGING BOLTED HORIZONTAL BRIDGING BOLTED HORIZONTAL BRIDGING METAL ROOF DECK, SEE SCHEDULE
