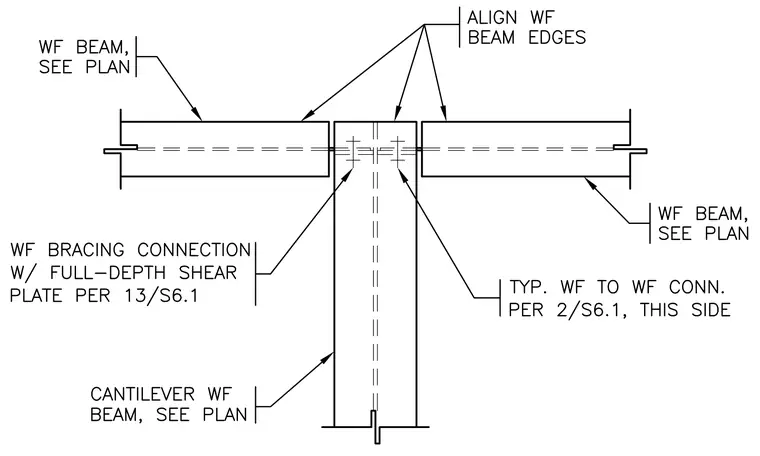

Wide flange beams framed into a cantilever wide flange beam, sized per plan, with aligned beam edges. A wide flange bracing connection utilizes a full-depth shear plate per detail 13 on sheet S6.1. A typical wide flange to wide flange connection is specified per detail 2 on sheet S6.1 on this side.
