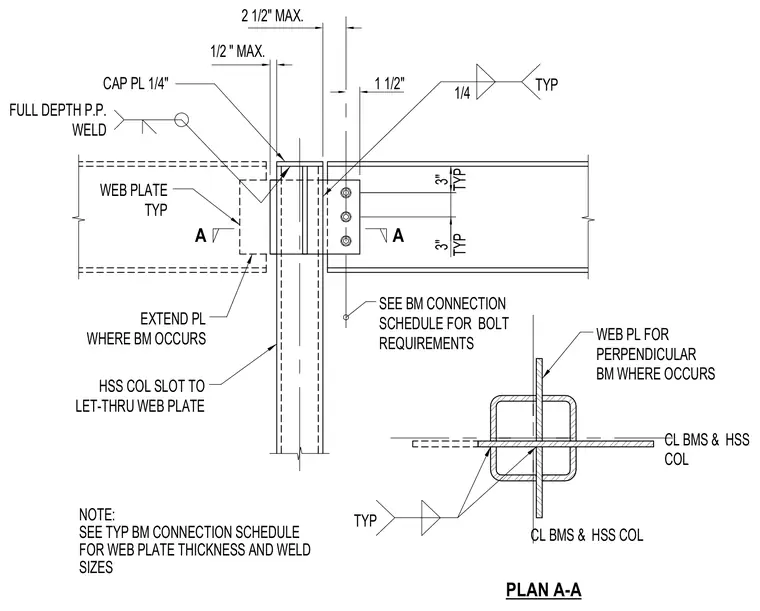

A steel beam frames into a hollow structural section column using a web plate that passes through a slot cut in the column. A quarter-inch cap plate is welded to the top of the column with a full depth partial-joint-penetration weld. A web plate extends through the column to accommodate perpendicular beams where required. A typical quarter-inch fillet weld secures the beam web to the connection plate. Bolt requirements for the connection are specified per the beam connection schedule.
PLAN A-A 3" TYP 3" TYP 2 1/2" MAX. 1/2 " MAX. 1 1/2" SEE BM CONNECTION SCHEDULE FOR BOLT REQUIREMENTS TYP CL BMS & HSS COL WEB PL FOR PERPENDICULAR BM WHERE OCCURS CL BMS & HSS COL TYP 1/4 NOTE: SEE TYP BM CONNECTION SCHEDULE FOR WEB PLATE THICKNESS AND WELD SIZES HSS COL SLOT TO LET-THRU WEB PLATE EXTEND PL WHERE BM OCCURS WEB PLATE TYP CAP PL 1/4" A A FULL DEPTH P.P. WELD
