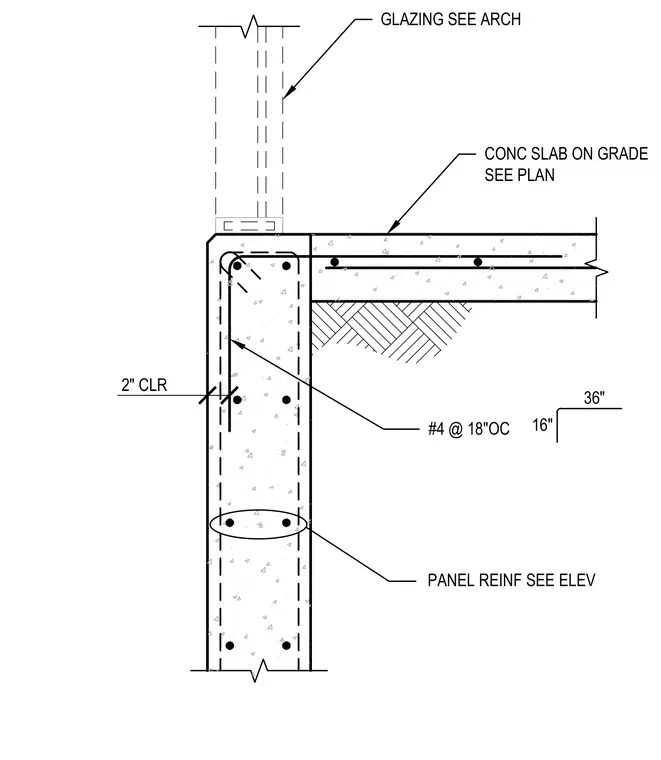

A concrete slab on grade bears against a reinforced concrete wall with panel reinforcement sized per elevation drawings. Number four reinforcing bars spaced at eighteen inches on center reinforce the junction with a two-inch clearance. Glazing above is coordinated per architectural drawings while the concrete slab on grade is detailed per structural plans.
GLAZING SEE ARCH CONC SLAB ON GRADE SEE PLAN #4 @ 18"OC PANEL REINF SEE ELEV 16" 36" 2" CLR
