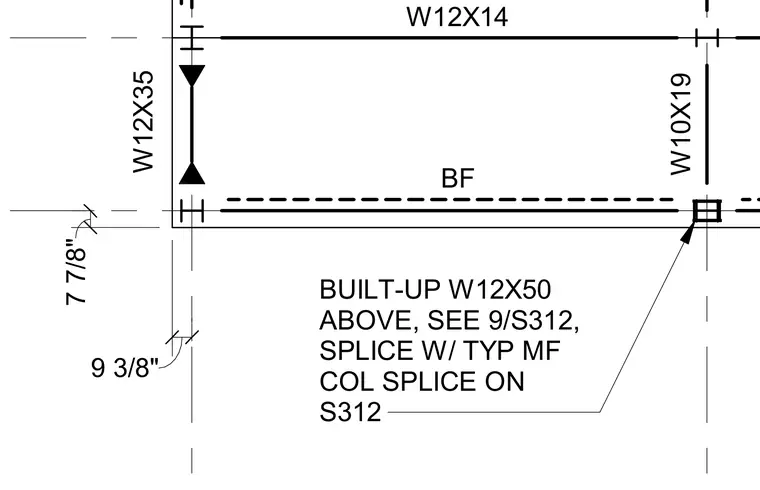

This structural framing detail shows a steel column splice with a built-up W12x50 section above, referencing sheet S312 for typical moment frame column splice requirements. The surrounding framing layout includes W12x14, W10x19, and W12x35 wide-flange steel members with dimensional offsets of seven and seven-eighths inches and nine and three-eighths inches.
BF W12X14 W10X19 W12X35 BUILT-UP W12X50 ABOVE, SEE 9/S312, SPLICE W/ TYP MF COL SPLICE ON S312 7 7/8" 9 3/8"
