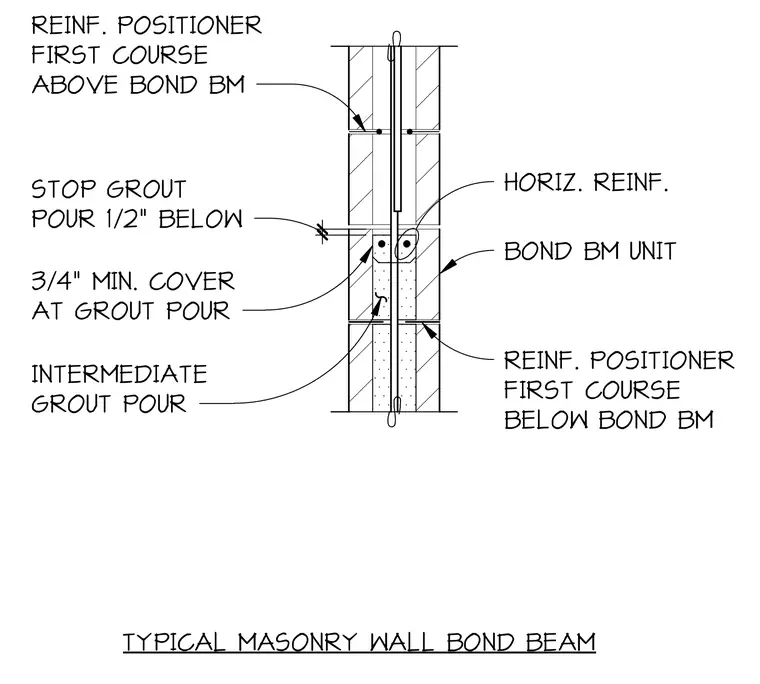

A typical concrete masonry unit wall construction features a bond beam unit with horizontal reinforcement. Reinforcement positioners are placed in the first course above and below the bond beam. The grout pour is stopped one-half inch below, maintaining three-quarters of an inch minimum cover at the grout pour. An intermediate grout pour is provided within the masonry cells.
HORIZ. REINF. BOND BM UNIT REINF. POSITIONER FIRST COURSE BELOW BOND BM REINF. POSITIONER FIRST COURSE ABOVE BOND BM STOP GROUT POUR 1/2" BELOW 3/4" MIN. COVER AT GROUT POUR INTERMEDIATE GROUT POUR TYPICAL MASONRY WALL BOND BEAM
