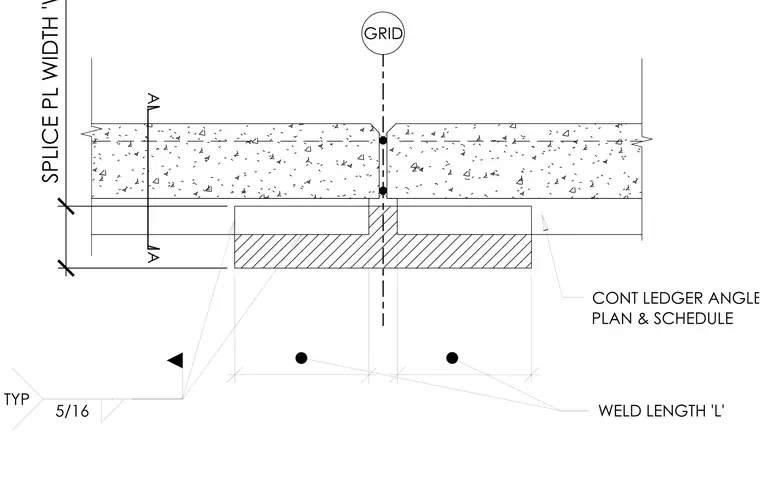

This assembly details a steel splice plate connection at a concrete panel offset aligned with a grid line. A continuous ledger angle, sized per plan and schedule, is positioned at the panel joint. The splice plate, defined by its width and length L, is secured to the ledger angle with 5/16-inch fillet welds applied typically along the connection length. The assembly maintains a specific gap at the grid line between the adjacent concrete panels.
Text on the drawing
WELD LENGTH 'L' A A SPLICE PL WIDTH 'W' SPLICE PL AT PANEL OFFSET GRID CONT LEDGER ANGLE, SEE PLAN & SCHEDULE 5/16 TYP
