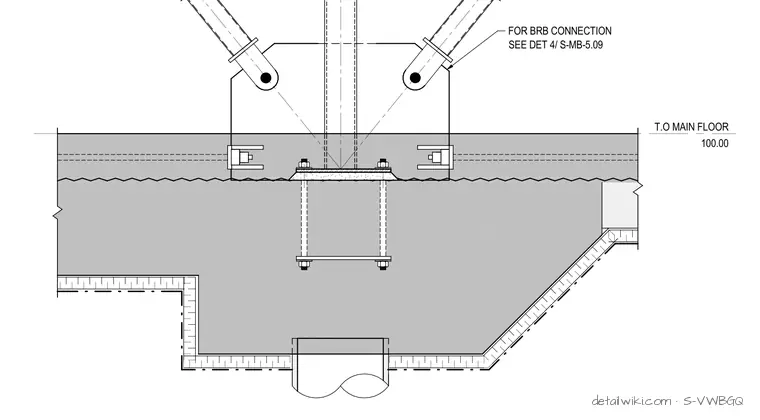

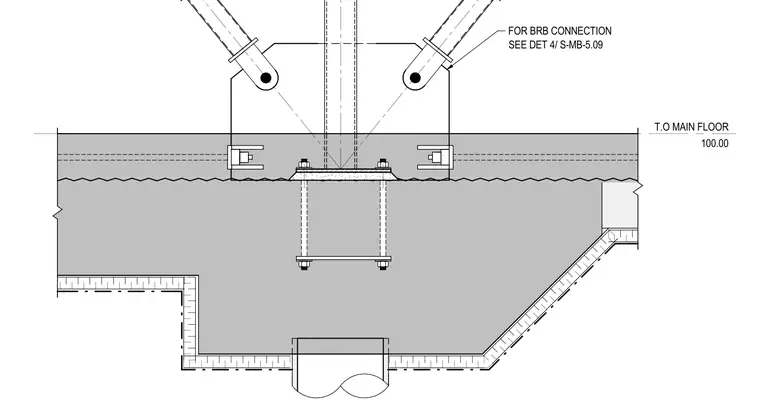

The assembly illustrates a structural steel connection framing into a concrete grade beam or foundation element at the main floor level. It features gusset plates, pin connections for buckling-restrained braces, anchor bolts, and base plates embedded or anchored into the concrete structure. The detail provides elevation references for the top of the main floor and outlines the intersection of lateral force-resisting bracing systems with the perimeter foundation transition.
Text on the drawing
T.O MAIN FLOOR 100.00 SEE DET 4/ S-MB-5.09 FOR BRB CONNECTION
