Structural · S-VW7WQ

Continuous Bent Closure Plate at Steel Framing and Metal Deck

Materials

Concrete Steel Cold-formed Steel Metal (misc.)

Elements

Beams Walls Curtain Walls Floors / Slabs Decks Arches Bracing Insulation

Connections

Bracing Connection Welded Connection Deck Attachment

About this detail

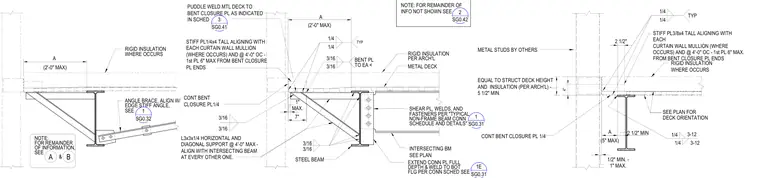

A continuous one-quarter-inch bent closure plate ties into a steel beam supporting metal deck and curtain wall framing. Three-eighths-inch by four-inch-tall stiffener plates align with each curtain wall mullion at four-foot-zero-inch on center, with the first plate located a maximum of six inches from the bent closure plate ends. The metal deck is puddle-welded to the bent closure plate as indicated in the schedule, featuring three-sixteenth-inch fillet welds. An angle brace consisting of an L3x3x1-4 member provides horizontal and diagonal support at four-foot-zero-inch maximum spacing, aligning with the intersecting beam at every other location. The steel beam connects via a shear plate with welds and fasteners per the typical non-frame beam connection schedule, and the connection plate extends full depth and is welded to the bottom flange per the connection schedule.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
