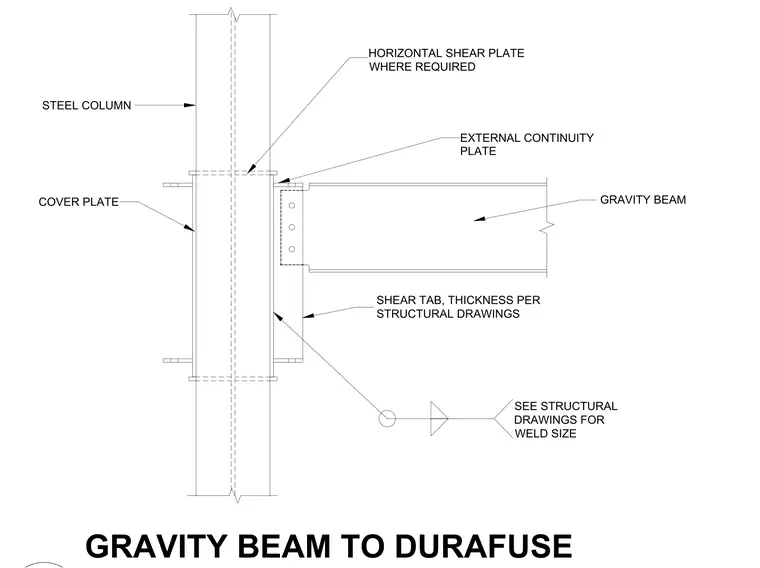

A structural steel gravity beam connects to a steel column using a bolted single plate shear tab welded to the column flange. External continuity plates and cover plates are provided at the column joint, supplemented by a horizontal shear plate where required. Weld sizes and shear tab thicknesses are sized per the structural drawings.
EXTERNAL CONTINUITY PLATE COVER PLATE STEEL COLUMN SEE STRUCTURAL DRAWINGS FOR WELD SIZE GRAVITY BEAM TO DURAFUSE GRAVITY BEAM HORIZONTAL SHEAR PLATE WHERE REQUIRED SHEAR TAB, THICKNESS PER STRUCTURAL DRAWINGS
