Slab Corner Reinforcement Detail

Elements

Columns Beams Walls Floors / Slabs Expansion / Control Joints

About this detail

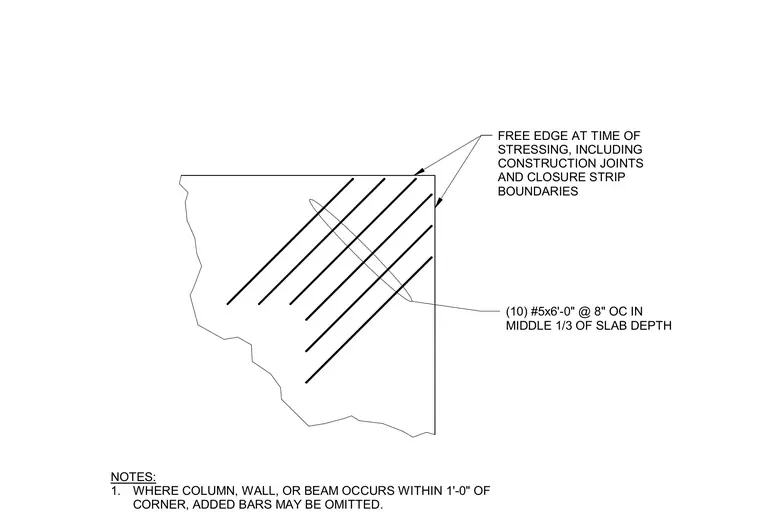

Ten number five reinforcing bars measuring six feet in length are placed at eight inches on center within the middle third of the slab depth along free edges at the time of stressing, including construction joints and closure strip boundaries. Where a column, wall, or beam occurs within one foot of a corner, these added bars may be omitted.
