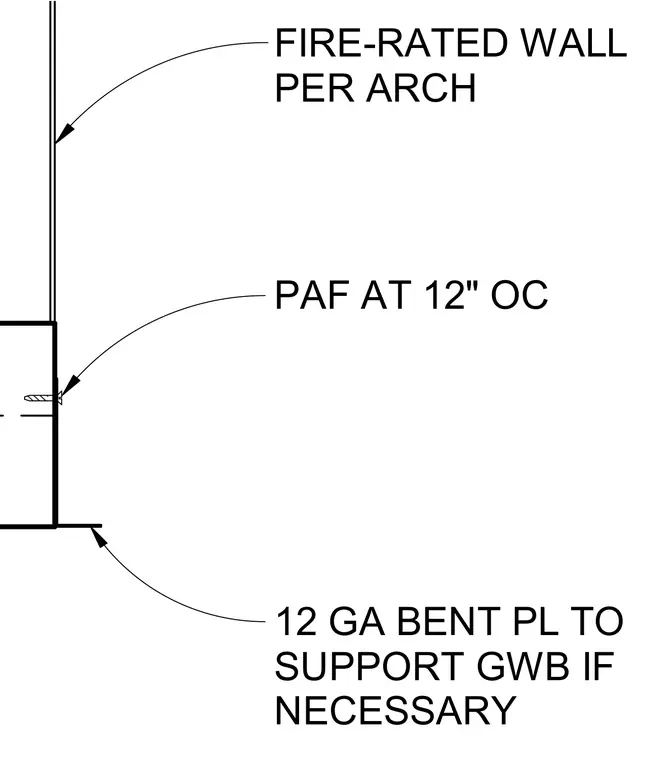

A fire-rated gypsum wall board assembly ties into the structure per architectural specifications. Twelve gauge bent plates support the gypsum wall board as necessary. Powder-actuated fasteners secure the framing components at twelve inches on center.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
