Structural · S-VVSRY

Roof Screen Support and Pipe Column Connection

Materials

Steel Metal (misc.)

Elements

Columns Beams Roofs Arches Connections / Plates

Connections

Base Plate / Anchorage HSS Connection Welded Connection

About this detail

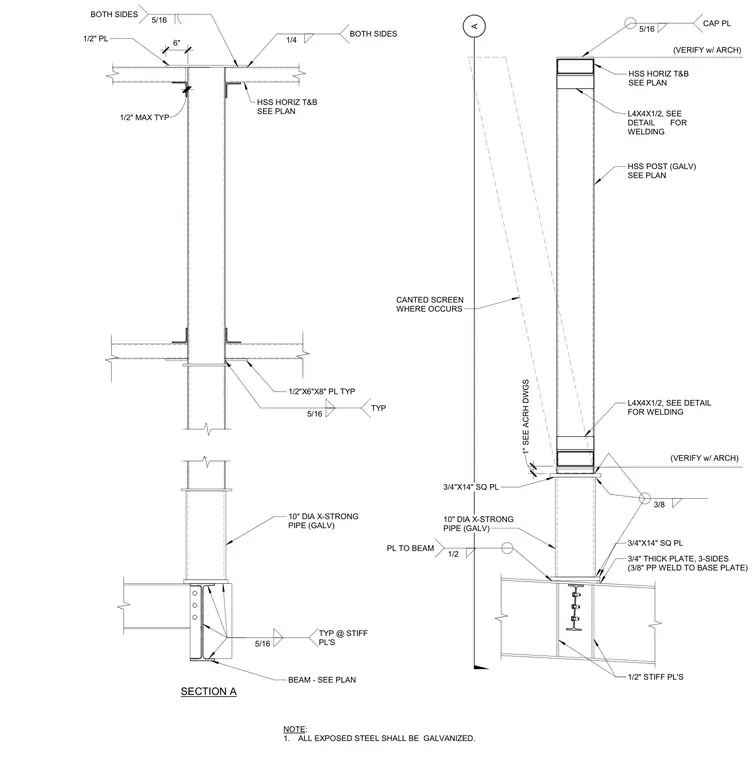

This structural section detail shows a roof screen framing assembly supported by a structural steel beam and a ten-inch diameter extra-strong galvanized pipe column. The pipe column transitions through a three-quarter-inch thick square base plate welded to the beam with a three-eighths-inch partial-joint-penetration weld on three sides, backed by one-half-inch stiffener plates. At the top of the pipe column, a three-quarter-inch square plate connects to a hollow structural section post, with continuous angle framing sized per plan and verified with the architectural drawings. Horizontal hollow structural section members frame into the top and bottom of the post, secured with five-sixteenths-inch fillet welds on both sides under a cap plate. A canted screen framing member ties back to the assembly as indicated, and all exposed steel is specified to be galvanized.
