Structural · S-VV93M

Concrete Beam Reinforcement and Post-Tensioning Details

Materials

Concrete

Elements

Beams Reinforcing

Connections

Rebar Splice / Development

About this detail

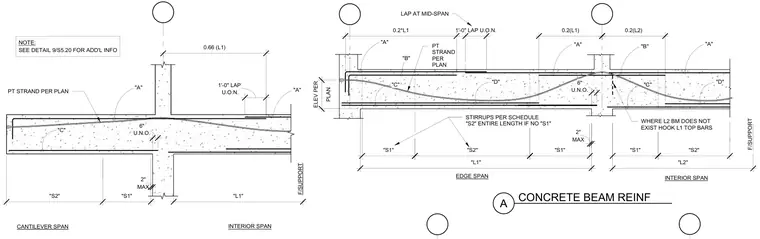

Concrete beam reinforcement details illustrate standard bar placement, lap splices, and post-tensioning strand profiles across cantilever, edge, and interior spans. Top and bottom reinforcement bars feature specific lap lengths and mid-span locations, with top bars hooked where adjacent beams do not exist. Stirrups are spaced per schedule across designated zones such as S1 and S2, with a maximum two-inch spacing near supports unless otherwise noted. Post-tensioning strands follow specified profiles within the concrete section, and additional information is referenced on structural detail drawings.
