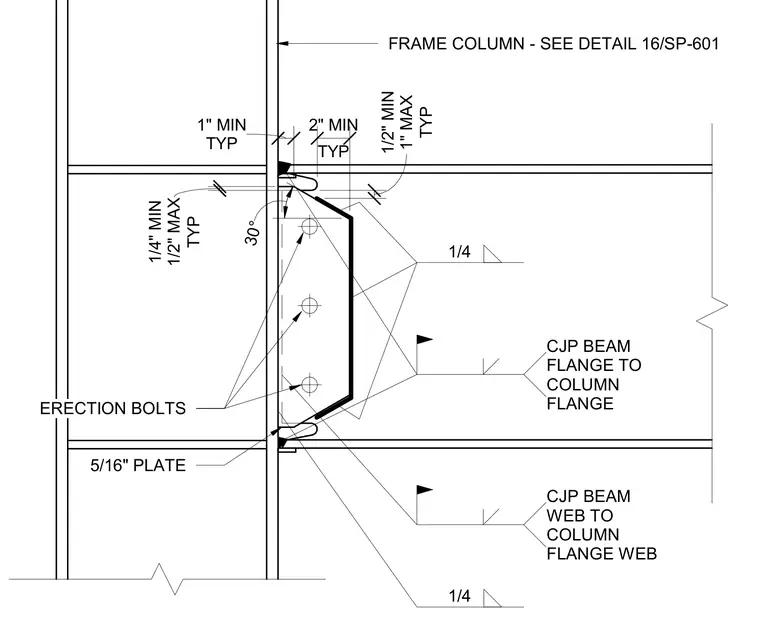

A steel beam connects to a structural steel column flange using a welded unreinforced flange-welded web moment connection. The beam flanges weld directly to the column flange with complete joint penetration welds featuring a thirty-degree bevel and specified minimum and maximum clearances. A plate is fastened to the beam web with erection bolts and joined to the members with fillet welds sized at one-quarter and five-sixteenths of an inch. A complete joint penetration weld connects the beam web to the column flange web.
TYP 1" MIN TYP 2" MIN TYP 1/2" MIN 1" MAX TYP 1/4" MIN 1/2" MAX CJP BEAM WEB TO COLUMN FLANGE WEB CJP BEAM FLANGE TO COLUMN FLANGE ERECTION BOLTS 30° 1/4 1/4 5/16" PLATE FRAME COLUMN - SEE DETAIL 16/SP-601
