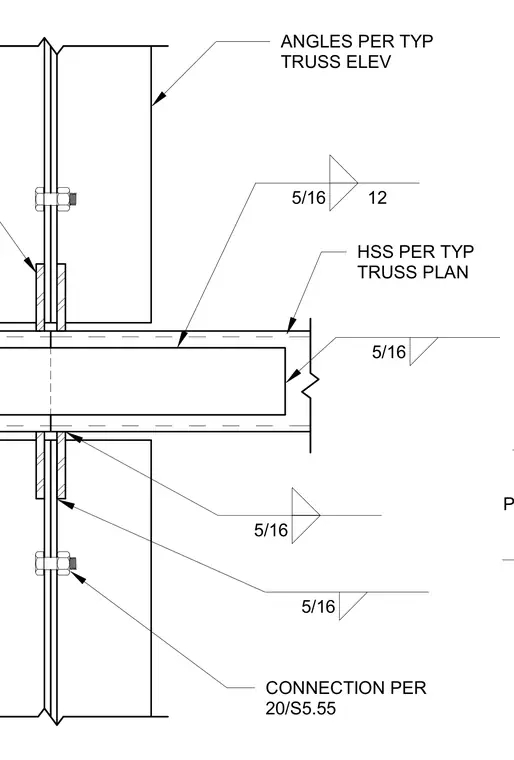

Hollow structural sections connect at a truss middle chord splice using sizing specified per typical truss plan. Angles sized per typical truss elevation tie into the assembly alongside a half-inch by six-inch by zero-foot-six-inch plate. Fillet welds sized at five-sixteenths inch secure the members and connection plates. Additional bolting and connection details are provided per sheet twenty of standard structural series five point five five.
ANGLES PER TYP TRUSS ELEV HSS PER TYP TRUSS PLAN 5/16 5/16 5/16 5/16 12 CONNECTION PER 20/S5.55 PL 1/2 x 6 x 0'-6"
