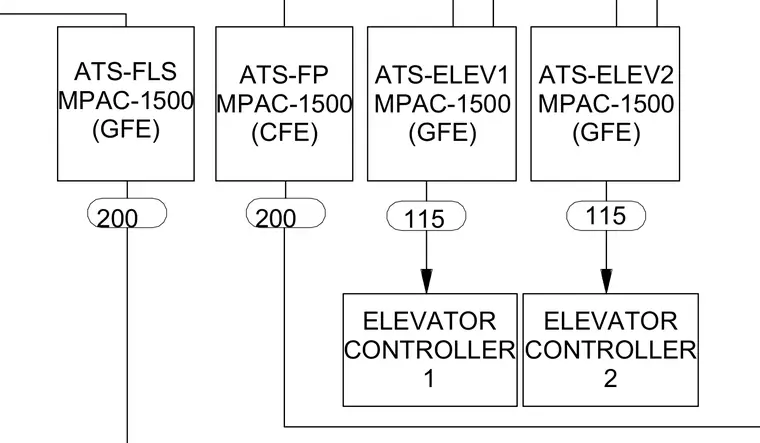

Automatic transfer switches designated MPAC-1500 for life safety, fire protection, and elevator controls link to designated elevator controllers with numbered circuit designations.
ATS-FLS MPAC-1500 (GFE) ATS-FP MPAC-1500 (CFE) ATS-ELEV1 MPAC-1500 (GFE) ELEVATOR CONTROLLER 1 115 200 200 ATS-ELEV2 MPAC-1500 (GFE) ELEVATOR CONTROLLER 2 115
