Structural · S-VTWSA

Typical Sfrs Collector Connector

Materials

Steel

Elements

Beams Roofs Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

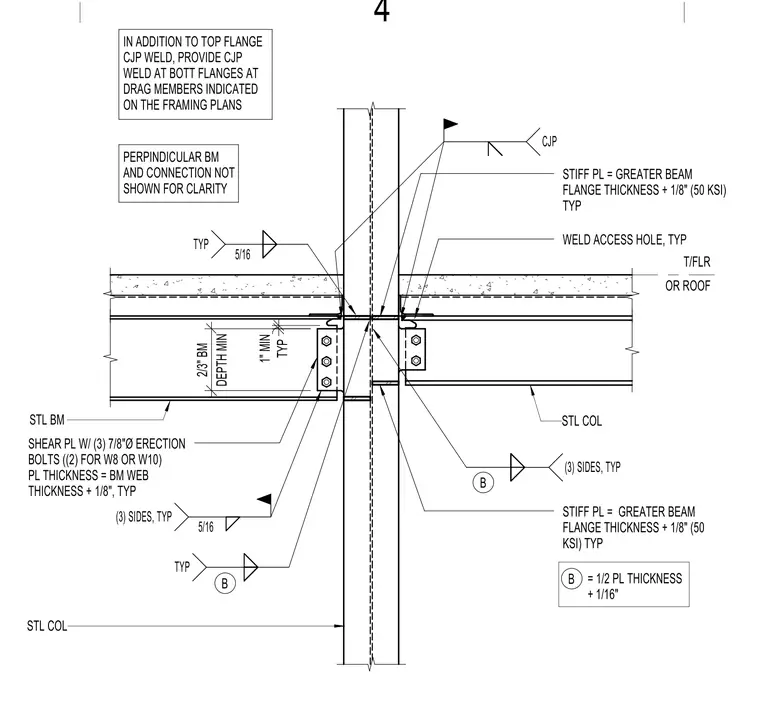

A structural steel beam-to-column connection features a steel column supporting steel beams on opposing sides. The connection utilizes a shear plate welded to the column and fastened to the beam web with three seven-eighths inch diameter erection bolts, reduced to two for W8 or W10 shapes. Plate thickness is sized to match the beam web thickness plus one-eighth inch. Stiffener plates welded to the column flanges are sized to the greater beam flange thickness plus one-eighth inch using fifty ksi steel. Complete joint penetration welds are specified at the top and bottom flanges, including specific weld access holes and five-sixteenths inch fillet welds on three sides. Additional complete joint penetration welds are required at the bottom flanges for designated drag members indicated on the framing plans.
