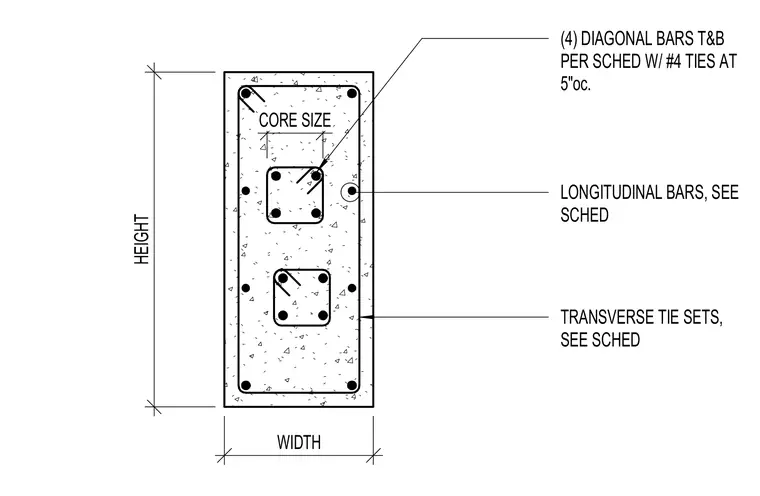

This concrete coupling beam cross-section detail shows the arrangement of reinforcing steel within a rectangular concrete member defined by height and width dimensions. Four diagonal bars top and bottom are placed per schedule and enclosed by number four ties at five inches on center. Longitudinal bars and transverse tie sets are provided per schedule. The core size is dimensioned centrally within the beam section.
HEIGHT WIDTH TRANSVERSE TIE SETS, SEE SCHED LONGITUDINAL BARS, SEE SCHED (4) DIAGONAL BARS T&B PER SCHED W/ #4 TIES AT 5"oc. CORE SIZE
